Frankly speaking, the program can be written in anything, because it uses the standard mechanism of dynamic libraries for all Windows programs — DLL. But the author of this article is related to Delphi programming environment, so the example deals exactly with it.

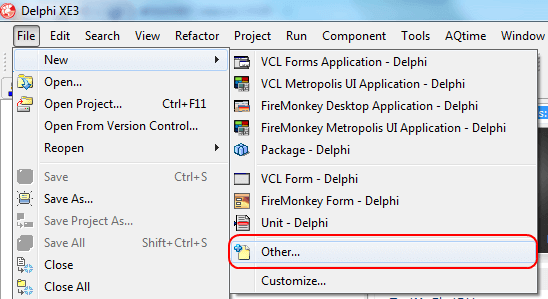

Our application will be console without user interface. Run the programming environment and choose in the main menu "File" — "New" — "Other":



Create a new project MyChat Integration API в Delphi XE3

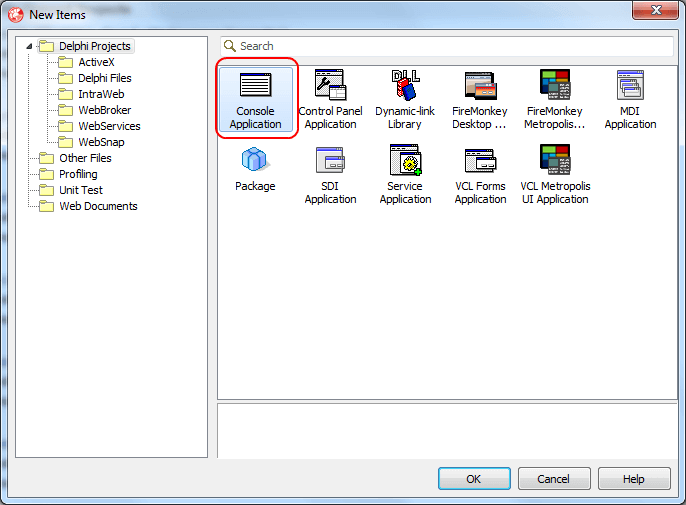

In the window, choose"Console Application":



Console Application for MyChat Integration API in Delphi XE3


As we do not need any graphic interface for our program, the console application is more suitable.



We need  a 32-bit DLL library of MyChat Integration API (C:\Program Files (x86)\MyChat Server\doc\IntegrationAPI\MyChatIntegrationAPIDLLs\x32\mychat.dll) to connect to MyChat Server and send a text message to a specified user.



A simple example shows how to send a text message that consists of two lines on behalf of built-in bot Elisa.



Program text:


// MyChat Integration API sample
// Copyright (c) 2012-2016 by Alexey Pikurov / Network Software Solutions
// https://nsoft-s.com/aboutmychat.html
// [email protected]
//
// Tested on Delphi XE3
// Support, questions, comments: https://nsoft-s.com/mychatforum
//
// 22.02.2016
program TestMyChatDLL;
{$APPTYPE CONSOLE}
uses Windows;
const
  MCIAPI_CS_SendPrivateMessage  = 2;
  MCIAPI_CS_IsUINOnline         = 3;
  MCIAPI_CS_SendChannelMessage  = 4;
  MCIAPI_CS_GetUINByNick        = 5;
  MCIAPI_CS_GetUINByEmail       = 6;
  MCIAPI_CS_IsUINExists         = 7;
  MCIAPI_CS_AddBBSMessage       = 8;
  MCIAPI_SC_SetChannelTopic     = 9;
  MCIAPI_CS_GetChannelNameByUID = 10;
  MCIAPI_CS_IsChannelExists     = 11;
  MCIAPI_CS_GetUINByADLogin     = 12;
  MCIAPI_CS_GetInfoByUIN        = 13;
  MCIAPI_CS_GetServerInfo       = 14;
var
  mychatGetLibVersion: function:WideString;safecall;
  mychatGetLibReleaseDate: function:WideString;safecall;
  mychatSendData: function (sIP: WideString; iPort: DWORD; sServerKey: WideString; iCmd: DWORD; sJSONData: WideString): WideString;safecall;
  LibHandle: THandle;
  sData: WideString;
begin
  // clean variables from trash
  @mychatGetLibVersion     := nil;
  @mychatGetLibReleaseDate := nil;
  @mychatSendData          := nil;
  // trying to load the library
  LibHandle := LoadLibrary('mychat.dll');
  // if everything is ??
  if LibHandle >= 32 then begin
    // ...then trying to get an address of the function in the library
    mychatGetLibVersion     := GetProcAddress(LibHandle, 'mychatGetLibVersion');
    @mychatGetLibReleaseDate := GetProcAddress(LibHandle, 'mychatGetLibReleaseDate');
    @mychatSendData          := GetProcAddress(LibHandle, 'mychatSendData');
    Writeln(mychatGetLibVersion + ' / ' + mychatGetLibReleaseDate);
    // if everything is ??
    sData := '{"UserTo":"6","UserFrom":"0","Msg":"Hello, how are you?'+ #13#10#13#10 + 'Call me back after work"}';
      if @mychatSendData <> nil then
        // ...then call this function and show the result
        writeln(mychatSendData('mychat-server.com', 2004, 'iddqd' , MCIAPI_CS_SendPrivateMessage, sData));
  end;
  // ...do not forget to free a memory and unload DLL
  FreeLibrary(LibHandle);
end.

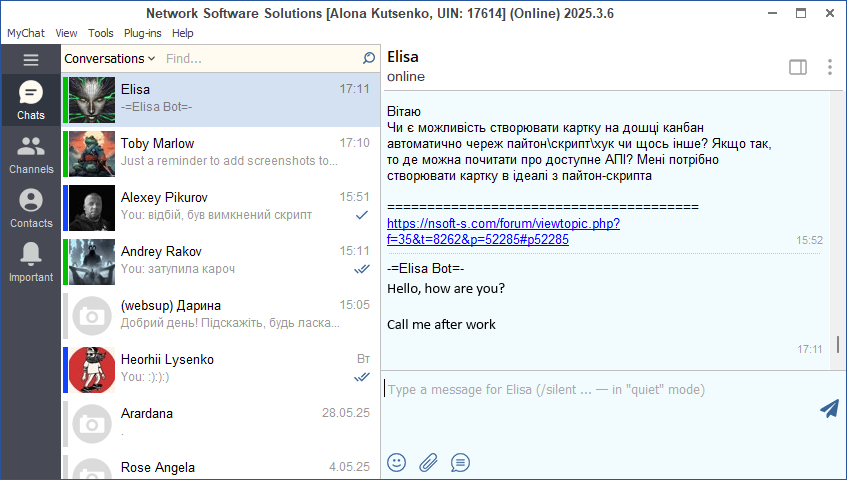

A received message in a client looks like this:



Сообщение в MyChat Client, отправленное из внешней библиотеки MyChat Integration API
